Variable Wirewound Power Resistor
|
Variable Wirewound Power Resistor
|
|
Power Rating
|

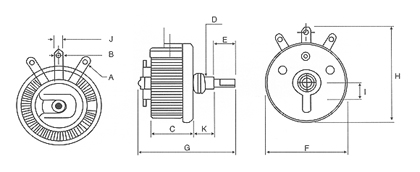

Dimensions (mm)
|
ResistanceRange
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
|
25W
|
2.5
|
3.2
|
22
|
3/8"
|
6*12
|
42
|
50
|
50
|
11
|
5
|
10
|
5-2.5K OHM
|
|
50W
|
4.2
|
4.2
|
28
|
3/8"
|
6*12
|
64
|
60
|
70
|
11
|
8
|
14
|
7-3.5K OHM
|
|
100W
|
4.2
|
4.2
|
42
|
3/8"
|
6*12
|
85
|
75
|
90
|
11
|
8
|
14
|
10-5K OHM
|
|
Test Item
|
Test Methods
|
Characteristics
|
Remark
|
|
Resistance Tolerance
|
JIS-C-5261 5-1
|
Resistance tolerance ± 10%
|
|
|
Insulation Resistance
|
JIS-C-5261 6-1 500VDC
|
1000MΩ min
|
|
|
Dielectric Withstanding Voltage
|
JIS-C-5261 7-1 1000VDC 1 minute Between terminaland axis
|
Free of appearance or structural irregularity
|
|
|
Terminal Strength
|
JIS-C-5261 6-5 3kg 30 scconds
|
Free of appearance or structural irregularity ΔR/R≤±(2%+0.1Ω)
|
ETC
|
|
Vibration
|
JIS-C-5261 6-61.5m/m 10~50~10Hz/min X-Y-Z zhoura each
|
Free of appearance or structural irregularity ΔR/R≤±(2%+0.1Ω)
|
ETC
|
|
Load Life
|
JIS-C-5261 7-7
|
Free of appearance or structural irregularity ΔR/R≤±(5%+0.1Ω)
|
|
|
Full Gyration Angle
|
JIS-C-5261 6-1
|
300 ± 5 °C
|
ETC
|
|
Flame Retardation
|
100%~600%rated power olad
|
US UL-94 flame retardation test V-0 grade noncombustible
|
|
|
|
|
