Metal Plate Non-Inductive Cement Type
.jpg)
.jpg)
.jpg)
|
pr
|
Power Rating
|

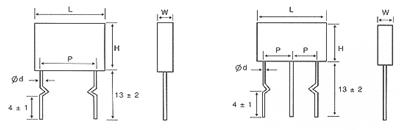

DIMENSIONS(mm)
|
Maximun
Working
Voltage
|
Maximun
Overload
Voltage
|
Resistance
Range
|
|
L
|
H
|
W
|
d
|
P
|
|
CR-E
|
3W
|
14±1.5
|
13±1.5
|
5±1.0
|
0.8±0.1
|
10±1
|
350V
|
700V
|
0.1Ω ~1Ω
|
|
5W
|
14±1.5
|
18±1.5
|
5±1.0
|
0.8±0.1
|
10±1
|
350V
|
700V
|
|
3W+3W
|
26±1.5
|
13±1.5
|
5±1.0
|
0.8±0.1
|
10±1
|
350V
|
700V
|
|
5W+5W
|
26±1.5
|
18±1.5
|
5±1.0
|
0.8±0.1
|
10±1
|
350V
|
700V
|
|
7W+7W
|
26±1.5
|
20±1.5
|
5±1.0
|
0.8±0.1
|
10±1
|
350V
|
700V
|
|

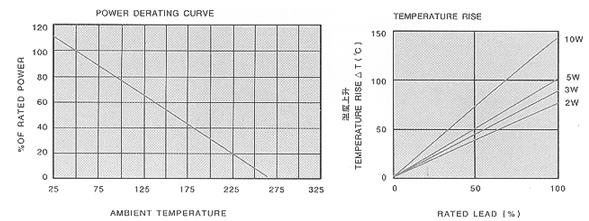

Characteristics
|
Specifications
|
Test Methods JIS 5202
|
|
Temperature Coefficient
|
±350PPM/C
|
5.2 B
|
|
Short Time Overload
|
ΔR≤ ±(2%Ro+0.05Ω)
|
2.5*5SEC
|
|
Dlelectric Withstanding Voltage
|
500V
|
5.7
|
|
Load Life Humidity
|
ΔR≤ ±(3%Ro+0.05Ω)
|
7.9
|
|
Load Life
|
ΔR≤ ±(3%Ro+0.05Ω)
|
7.10
|
|
Thermal Shock
|
ΔR≤ ±(2%Ro+0.05Ω)
|
JIS 50266.7
|
|
